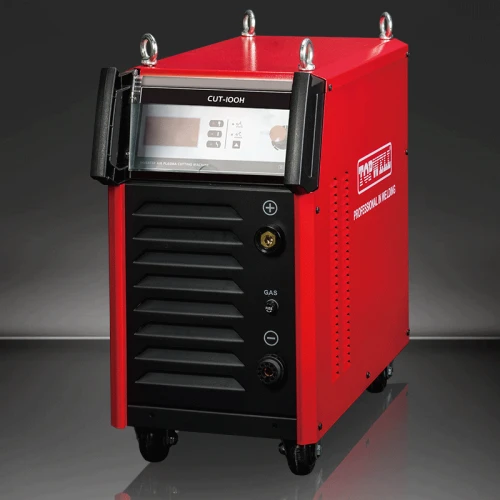

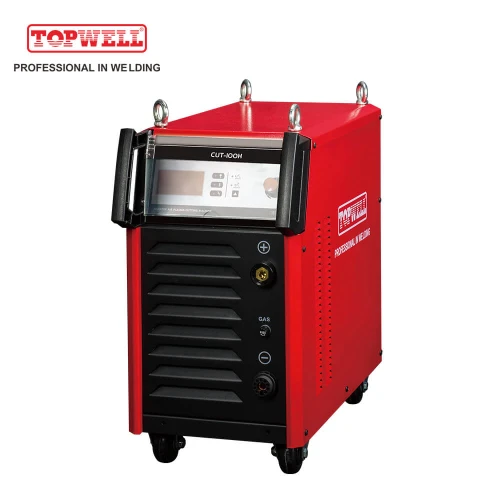

เครื่องตัดพลาสม่าความถี่สูง TOPWELL CUT-100H HF
เครื่องตัดพลาสม่าความถี่สูง TOPWELL CUT-100H HF
เครื่องตัดพลาสม่าความถี่สูง TOPWELL CUT-100H HF
เครื่องตัดพลาสม่าความถี่สูง TOPWELL CUT-100H HF
เครื่องตัดพลาสม่าความถี่สูง TOPWELL CUT-100H HF
แบบ
CUT-100H

คุณสมบัติ

แรงดันไฟฟ้าอินพุตที่กำหนด
3PH ~ 400V ± 15%
ครีบออกที่ได้รับการจัดอันดับสูงสุด
30-100A
แม็กซ์ กำลังโหลดไฟฟ้า
17.8KVA
effiency
85%
อินพุตกระแสสูงสุด
340 / 460V, 52 / 38A
แรงดันขาออกที่ได้รับการจัดอันดับ
120V
การรับรอง
CE, RoHS
การประกัน
รับประกัน 1 ปี
ขนาด
680X310X650mm
น้ำหนัก
42kg

ประเมินผล

รายละเอียดสินค้า

  • CUT-100H

    Professional-grade power plasma for cutting 20mm thickness metal @500mm/min

    • Light Industrial Application:

      Home workshop
      Metal workshops
      Light fabrication
      Repair and maintenance
    • These Materials:

      Mild Steel
      Brass
      Stainless Steel
      Copper
      Aluminum
    • Input Power: 340-460V, 3-Phase

      Amperage Range: 30-100A
      Rated Output at 40℃ (104℉):
      100A at @60% Duty Cycle
      Weight: 42KG



    Maximum productivity

    Cutting 20mm@500mm/min ensures the maximum pro ductivity(optional torch).

    Finish jobs much faster with cut speeds greater than oxyfuel.

    Spend less time on grinding and edge preparation due to superior cut quality.

    Easy-to-use with versatile design

    Very easy to use, even for first time operators.

    Non-HF type available: Starts without high-frequency so it will not have electromagnetic interfere.

    Tackle different jobs with multiple, easy-to-use torches.

    Easy to work with CNC system.

    Low operating cost

    Reduce costs with long consumable life and more uptime.

    High power efficiency lowers energy consumption.

    Rugged and reliable

    TOPWELL Certified reliability ensures performance in the most demanding environment.

    Powercool design cools internal components more effectively for long system life and improved uptime.

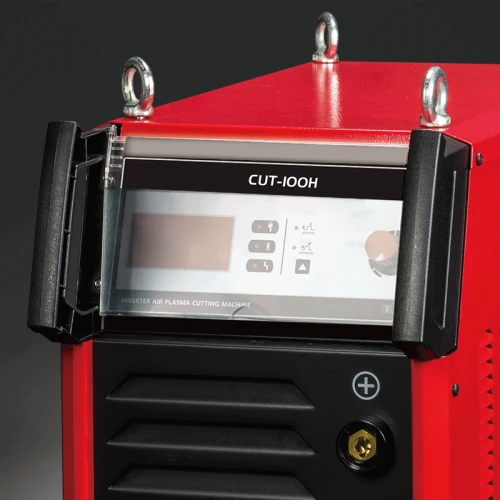

    General View of Control Panel

    • 1.Ammeter/Voltmeter Display

      2.Encoder Control

      3.Mode:2T(STD)/4T(HOLD)

    CUTTING CAPACITY

    CapacityThicknessCut speed
    Recommended20mm500mm/min
     33mm250mm/min
    Severance(hand cutting)45mm125mm/min
    Pierce*14mm

    *Pierce rating for handheld use or with automatic torch height control

    Non-HF Arc Ignition system

    • Torch off.
    • By pressing the trigger the torch will be fed by the current thus causing a temporary short circuit betweenelectrode and tip.
    • The air then pushes up the small piston, thuscreating, between the electrode and the tip, the distance needed to strike the pilot arc.
    • By positioning the torch on the part to be cut, theplasma arc will strike.





    Torches with pilot arc cut in without high frequency.

    Less electromagnetic disturbance, with consequent absence of problems for any electronic, radio, television, telephone and computer systems in the vicinity of the cutting positions.

    Less electric stress on the torch - and on the respective connecting cables - due to the absence of the high voltage necessary for striking the arc Greater simplicity in comparson with other torches(without high frequency) on the market,with a consequent decrease of the risks of jamming in the mechanical pneumatic movement for striking the arc. Subject to wear (electrode, tips, nozzles, diffusers etc.), thanks to the better cooling of the torch obtained by reducing the insulating thicknesses (without endangering the safety parameters).




  • Item No CUT-100H
    Input voltages (±15%) 340-460V, 3-PH, 50-60Hz
    Max Input current 340/460V, 52/38A
    Output current 30-100A
    Rated output voltage 120V
    Duty cycle @ 40° C (104° F) 60% @100A
      100% @80A
    Open circuit voltage (OCV) 280V
    Dimensions 680x310x650mm
    Weight 42kg
    Gas supply Air (clean, dry and oil-free)
    Recommended gas inlet flow rate/pressure 0.4-0.6Mpa
    Power supply type Inverter – IGBT
    Electrical efficiency 80%
    Max. Load Power Capacity 17.8KVA
    Certifications CE, RoHS
    Warranty Power supply: 3-year Torch: 1-year
  • ACCESSORIES

    For CNC

    3





    PLASMA torch: A101P

    Current: 50-100A

    Duty Cycle 60%: 75A

    Gas Pressure: 5.0Bar

    Gas Flow: 180L/min

    Ignition: HF








    PLASMA torch: STM-120

    Current: 40-120A

    Duty Cycle 60%: 120A

    Air pressure: 5.0-6.0Bar

    Gas Flow: 295L/min

    Ignition: Without HF

    For Hand






    PLASMA torch: A101

    Current: 30-100A

    Duty Cycle 60%: 100A

    Gas Pressure:5.0Bar

    Gas Flow: 180L/min

    Ignition:HF








    PLASMA torch: PT-100

    Current: 30-100A

    Duty Cycle 60%: 100A

    Air pressure: 5.0Bar

    Gas Flow: 200L/min

    Ignition: Without HF
